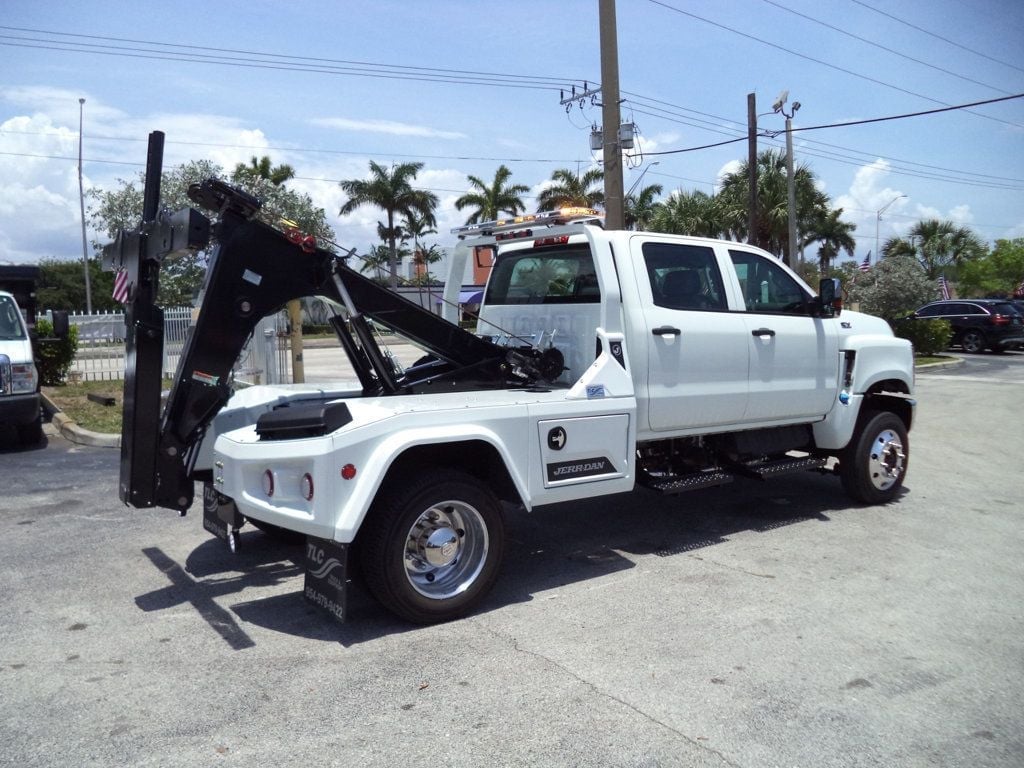

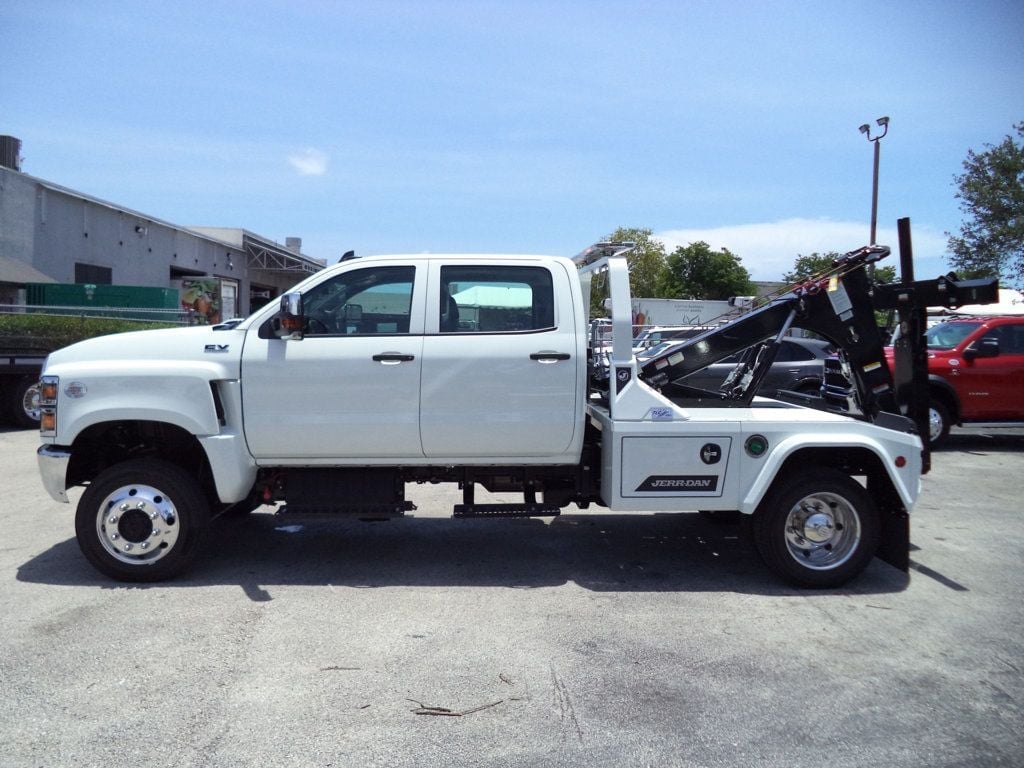

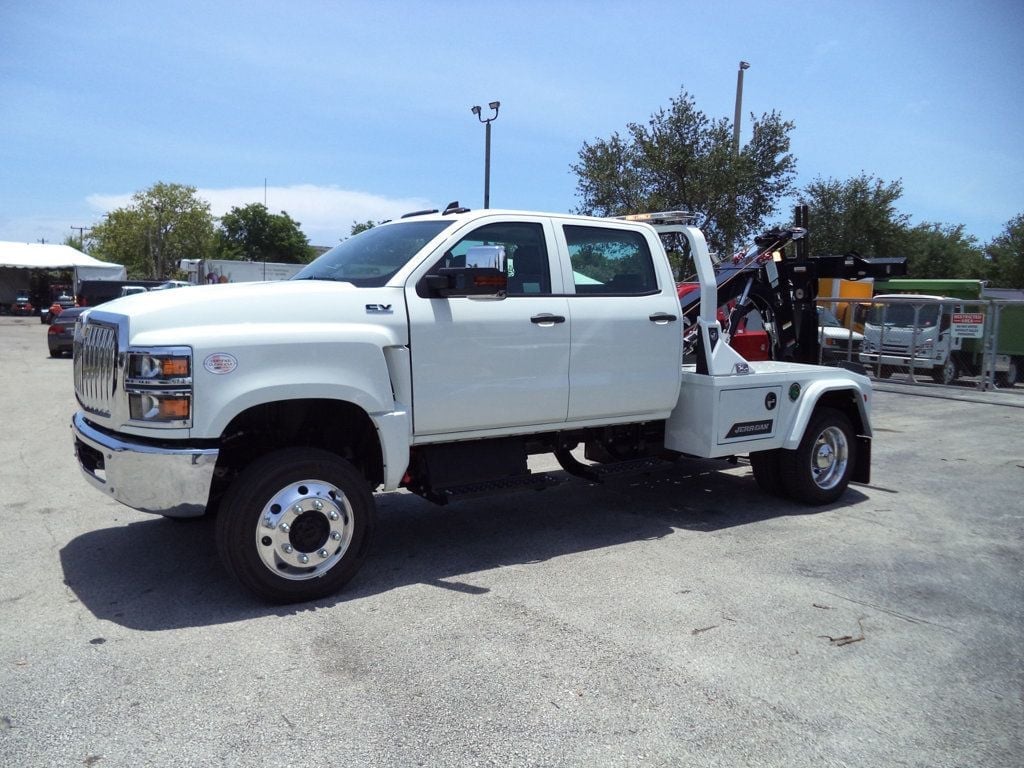

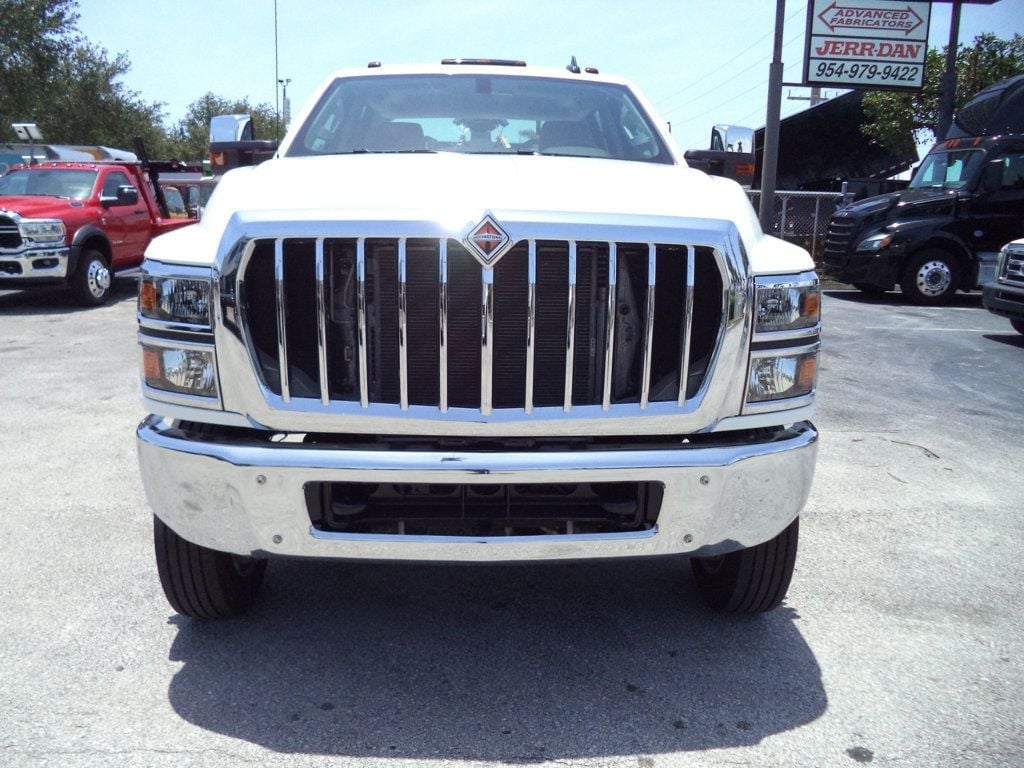

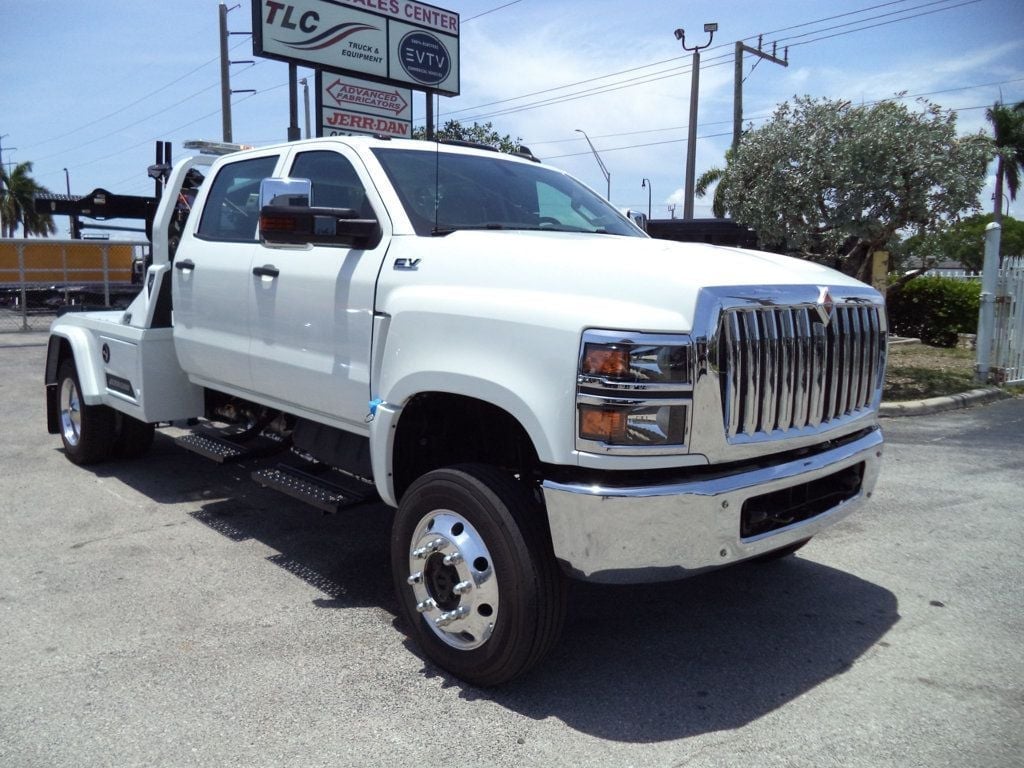

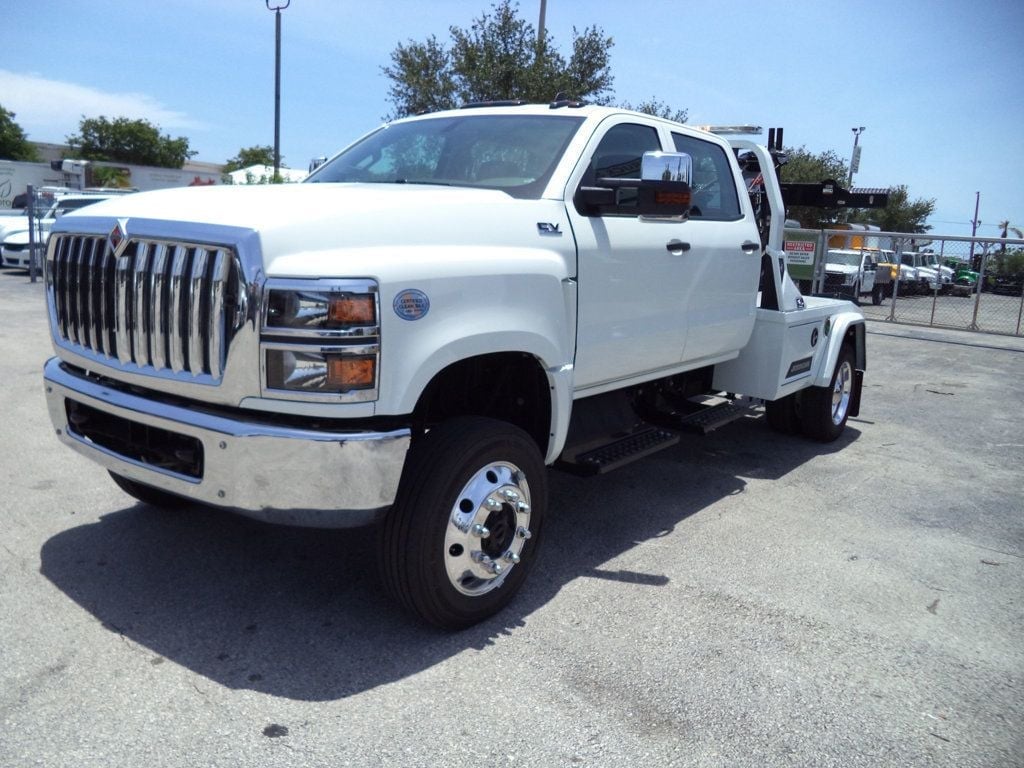

International CV515 Crew Cab 4x4 With Jerr-Dan Light Duty Wrecker Integrated MPL-40, Selfloader Tow Truck.
CHASSIS DETAILS:
International CV515 Crew Cab 4x4 With Jerr-Dan Light Duty Wrecker Integrated MPL-40, Selfloader Tow Truck.
CHASSIS DETAILS:
- International / Chevrolet
- CV515 / Silverado 5500HD

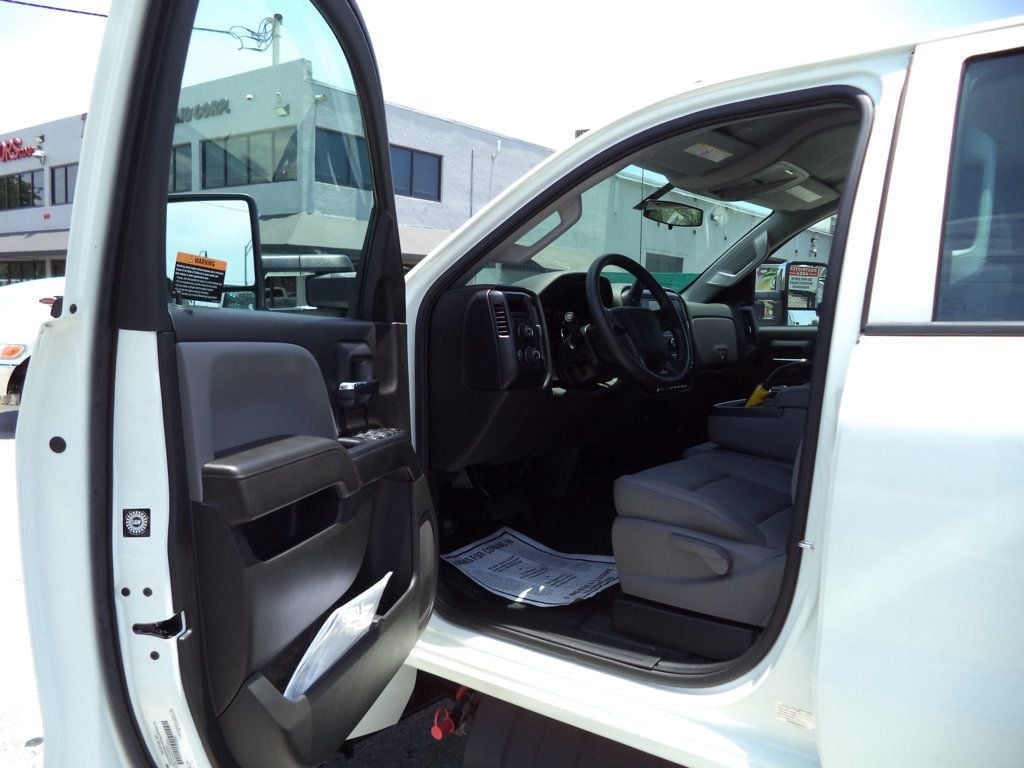

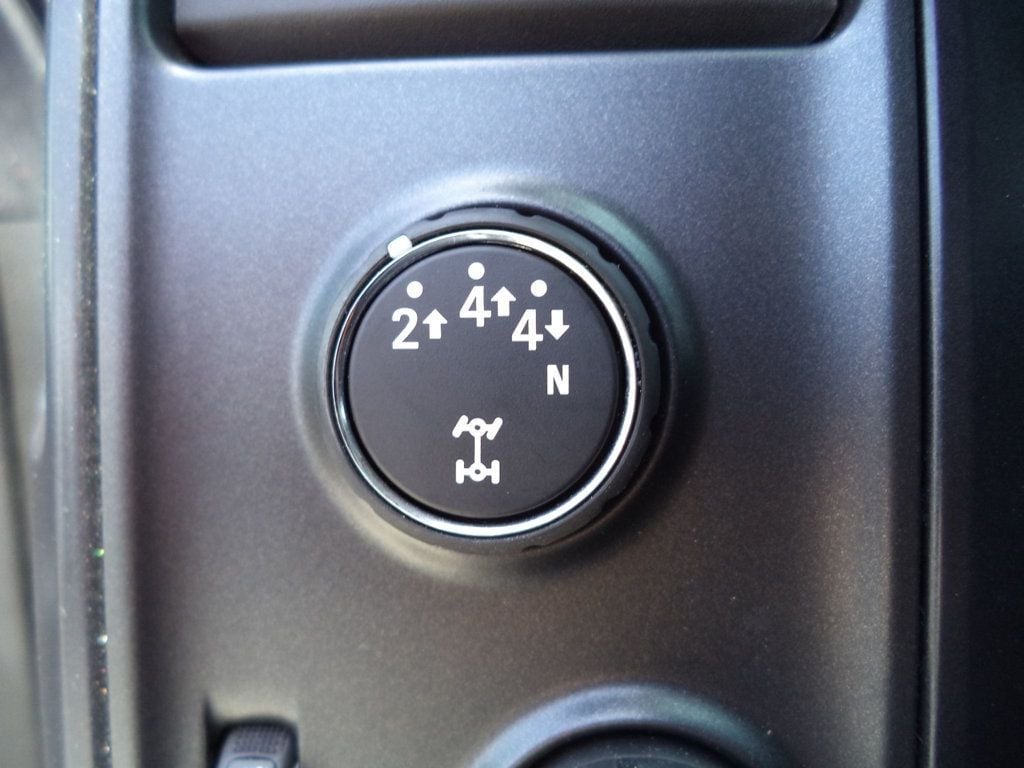

- Crew Cab 4x4
- Engine: 6.6L Turbo-Diesel V8
- Horsepower: 350 hp
- Torque: 700 lb-ft
- Transmission: Allison 6-Speed Close-Ratio

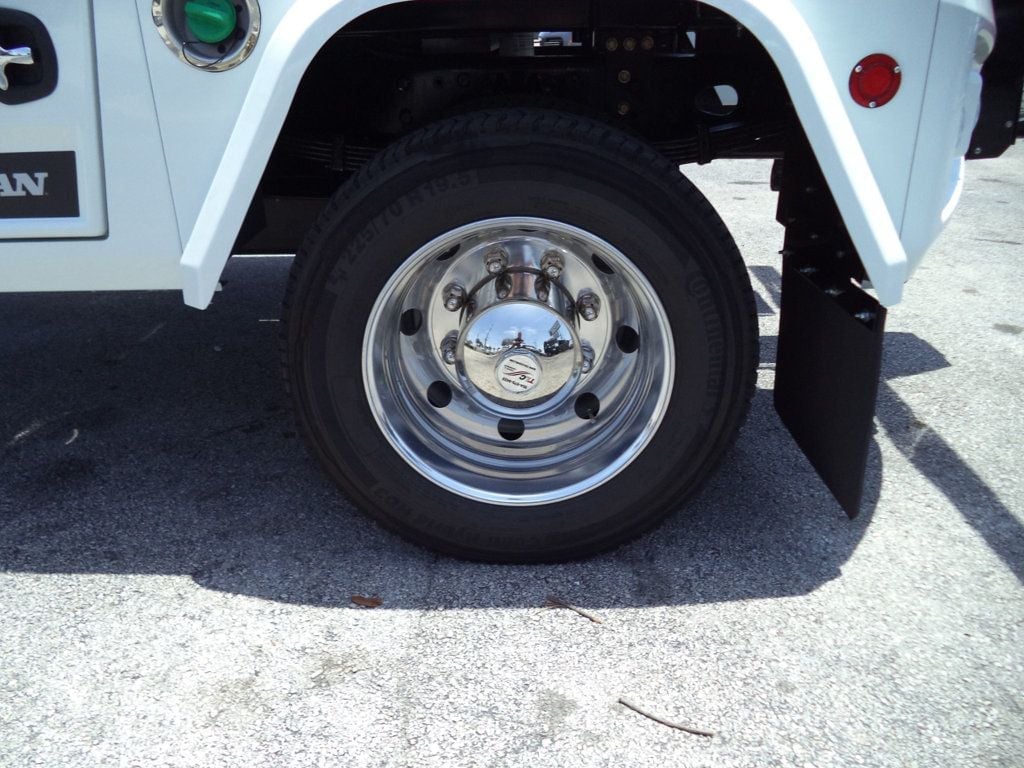

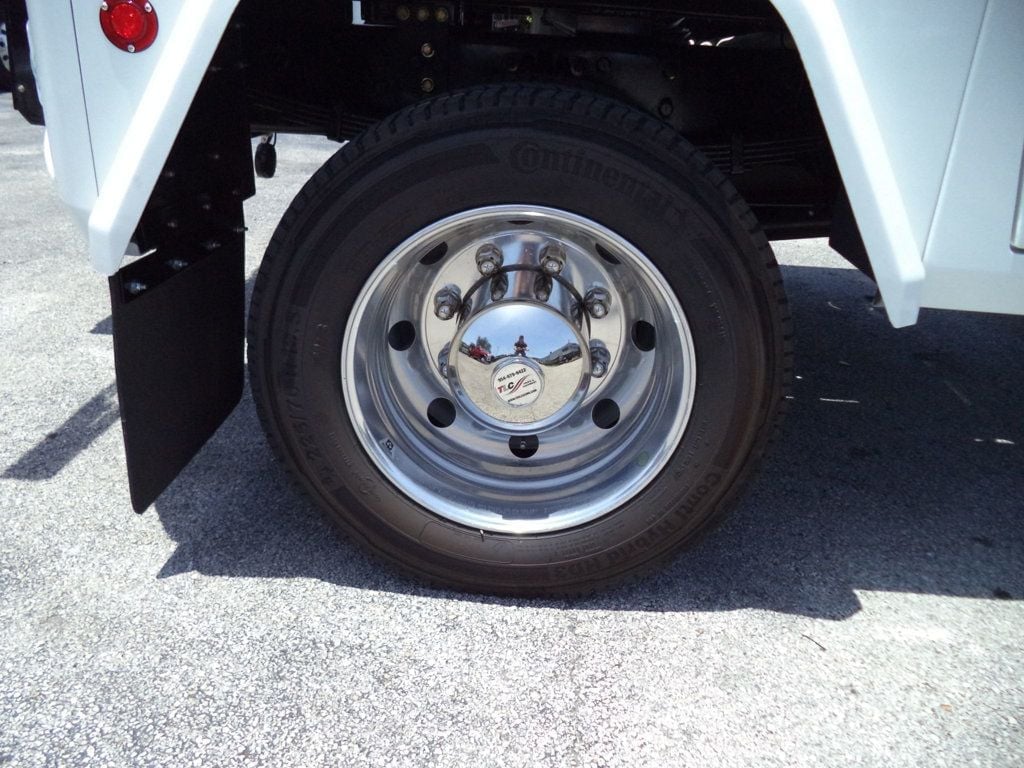

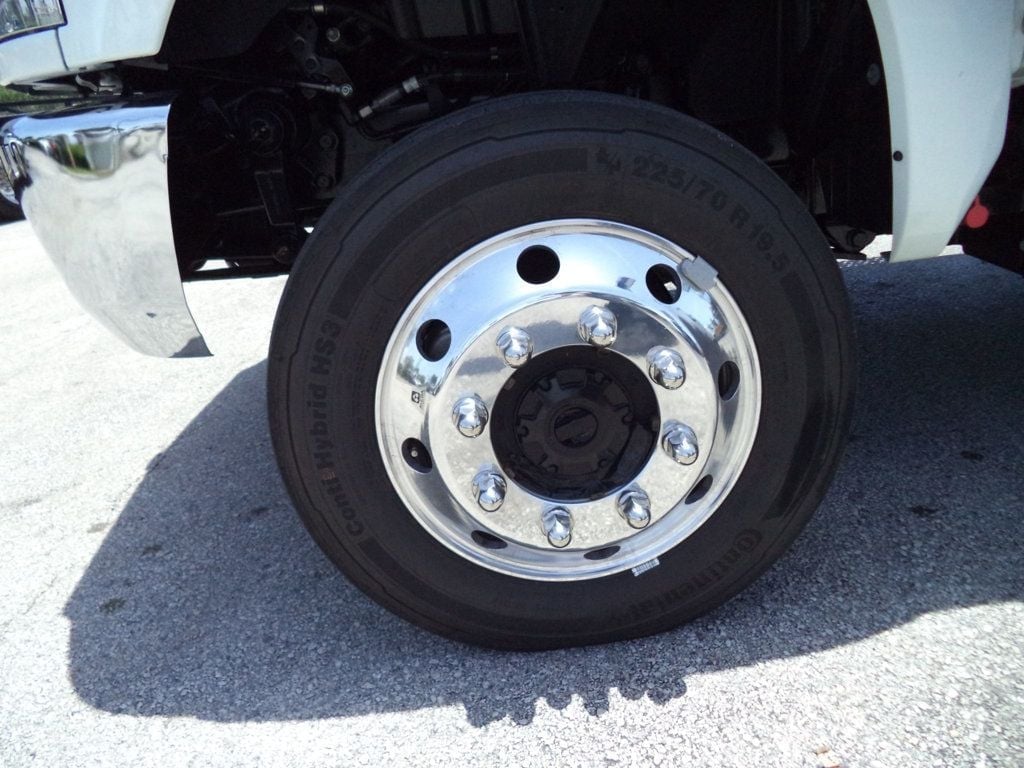

- Aluminum Wheels
- A/C
- AM/FM Radio
- 19,500 lbs GVWR
UPFIT CATEGORY: Wrecker Tow Trucks
UPFIT MAKE: Jerr Dan
UPFIT MODEL: MPL-40

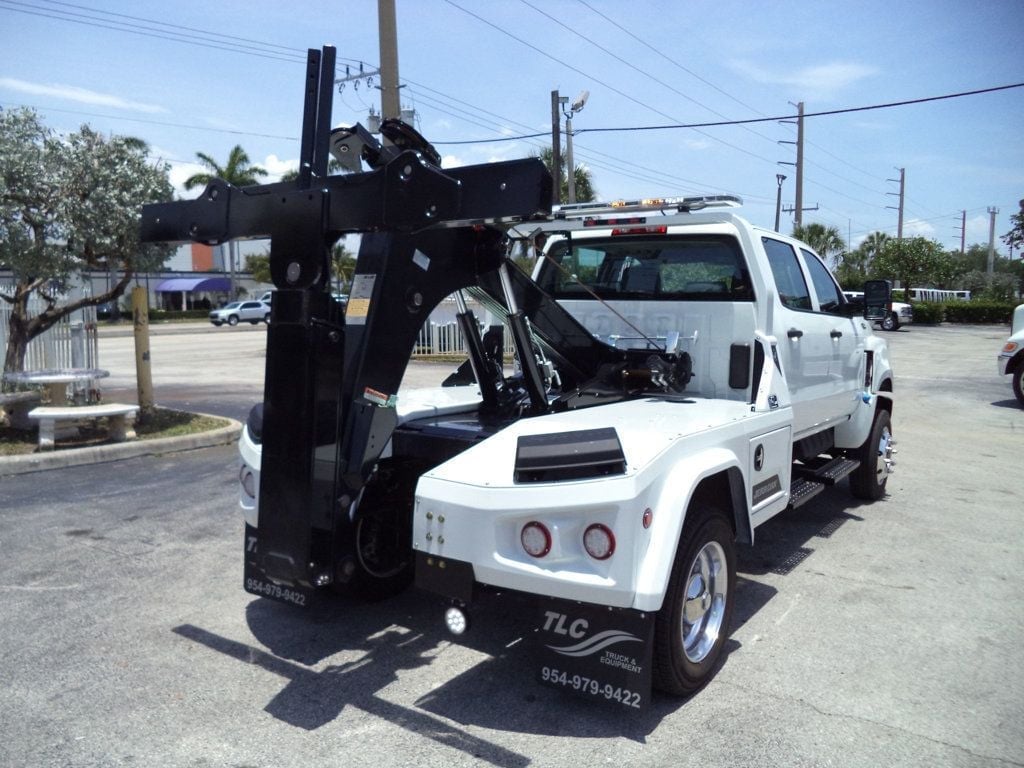

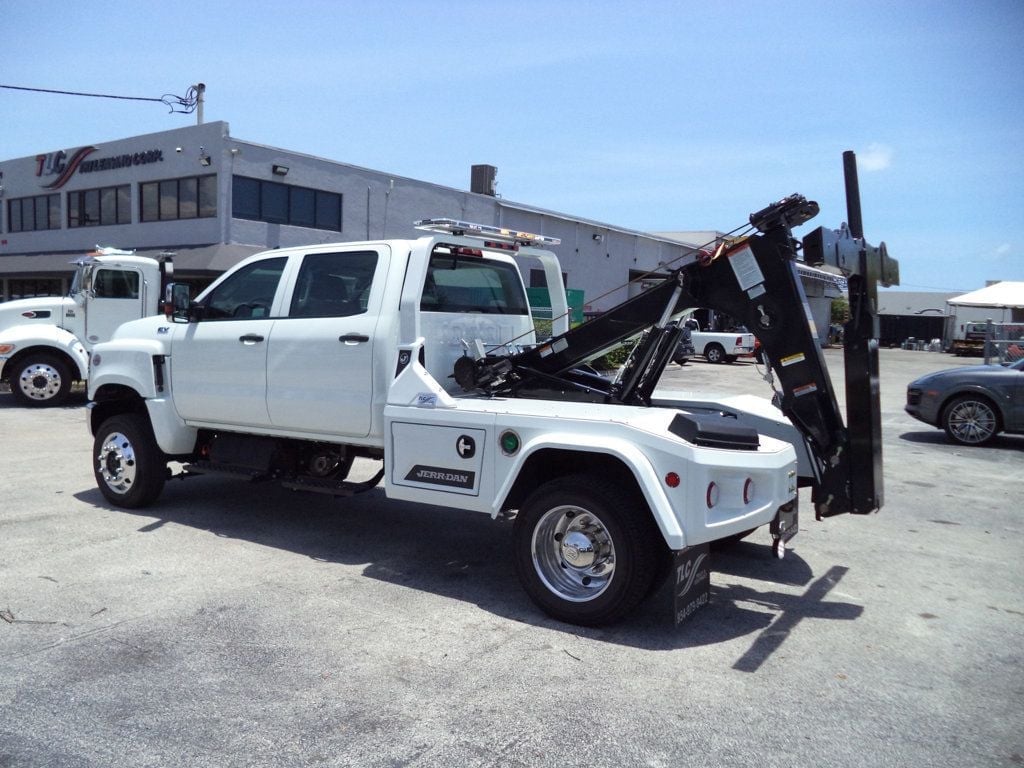

UPFIT DESCRIPTION: Jerr-Dan Light Duty Wrecker Integrated MPL-40, Selfloader Tow Truck. The MPL-40 offers a 8 ton integrated 2-Stage recovery boom, 4,000 lb. self-loading underlift featuring Underlift Level Stop Assist System, and a modular aluminum body.
UPFIT MAKE: Jerr Dan
UPFIT MODEL: MPL-40
UPFIT DESCRIPTION: Jerr-Dan Light Duty Wrecker Integrated MPL-40, Selfloader Tow Truck. The MPL-40 offers a 8 ton integrated 2-Stage recovery boom, 4,000 lb. self-loading underlift featuring Underlift Level Stop Assist System, and a modular aluminum body.

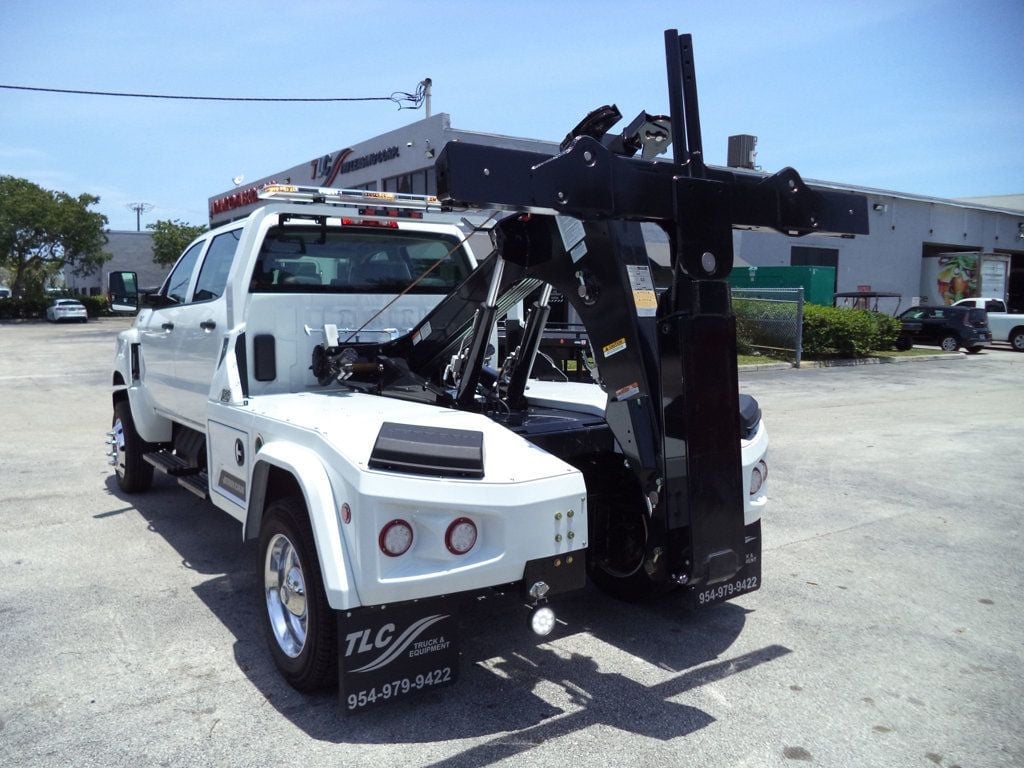

RECOVERY BOOM - 2 STAGE DETAILS:
- Retracted Capacity at 30 degrees 16,000 lbs
- Extended Capacity at 30 degrees 6,000 lbs
- Maximum Hook Height 110 inches
- Maximum Boom Angle 32 degrees
- Reach Past Tailboard - Extended at 0 degrees 67 inches
- Reach Past Tailboard - Extended at 30 degrees 46 inches
- Retracted Rating 4,000 lbs
- Retracted Reach 52 inches
- Extended Rating 4,000 lbs
- Extended Reach 81 inches
- Positive Tilt 20 degrees
- Negative Tilt 20 degrees
- Tow Capacity 7,500 lbs
- Winch Capacity 8,000 lbs
- Winch Option Dual
- Wire Rope (EIPS Galvanized) 3/8 inches x 110 feet

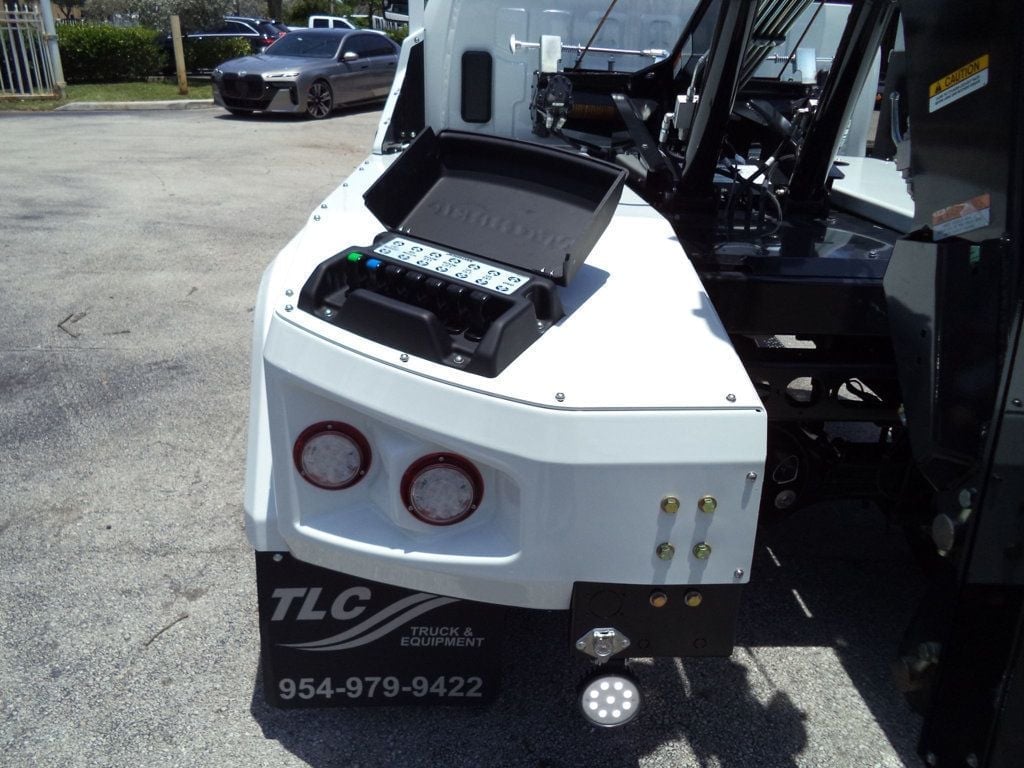

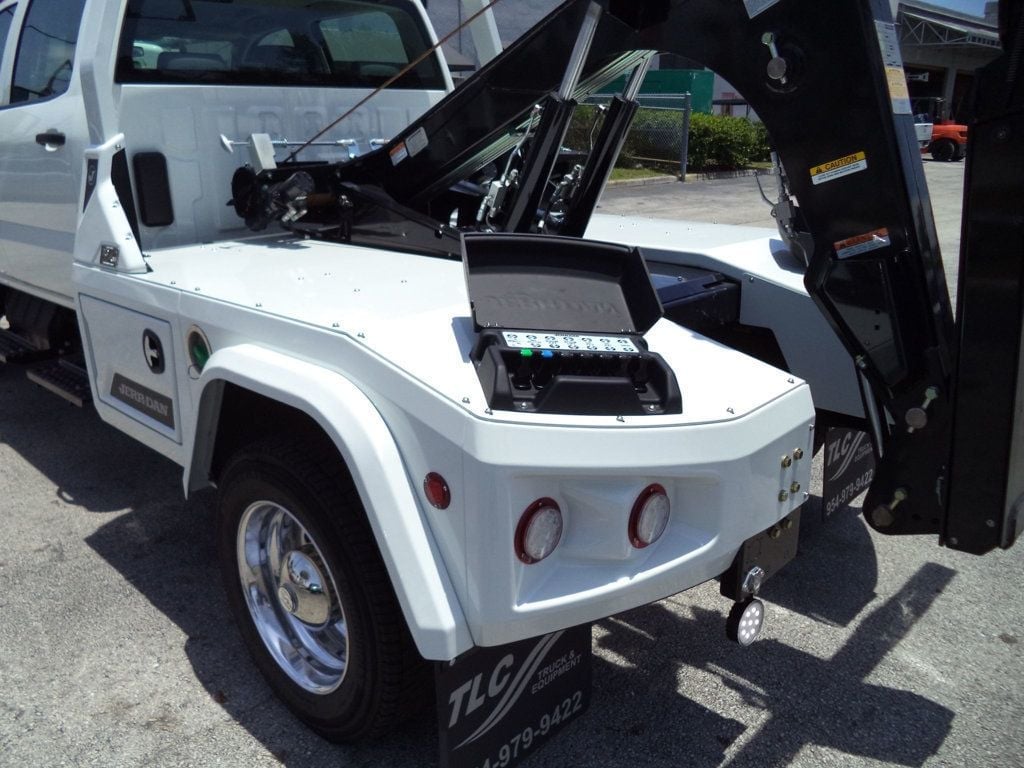

- Dual Side EH Controls
- Wired Underlift Remote Control
- No-Lube Technology
- 7-way RV/4-Way Flat Trailer Connection
- DOT Lighting
- Backup Alarm
- 8,000 lbs Boom with Dual Lift Cylinders

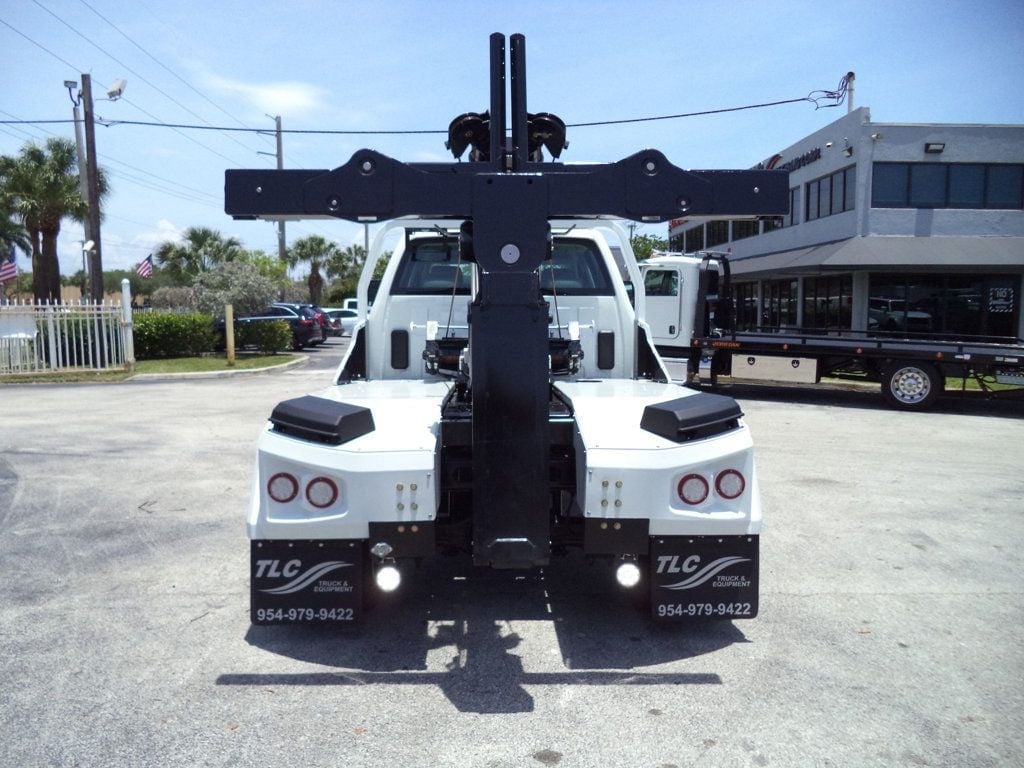

- Self-Loading Wheel Grids with LOCKLINK
- Underlift Level Stop Assist System
- Remote Free Spool Handles

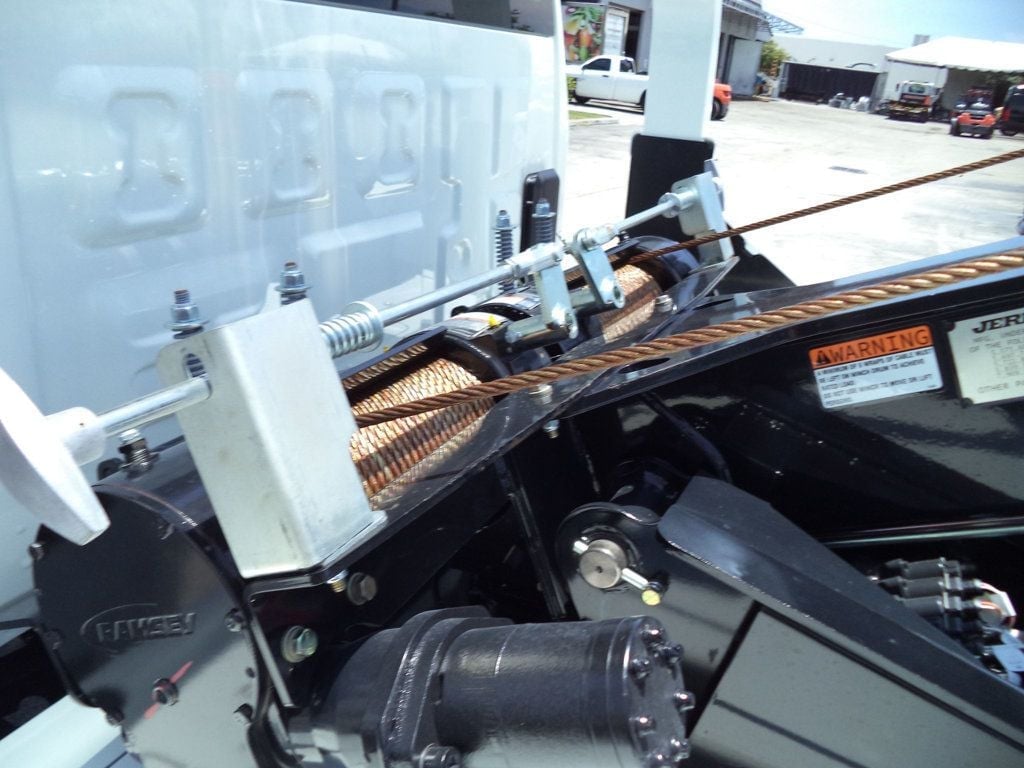

- Dual 8,000 lbs Worm Gear Winch with Tensioner Plate and Free Spool
- Wheel Lift Tie-Down Straps
- Full Coverage 1 Year Warranty
- Structural Coverage 5 Year Warranty
TOW EQUIPMENT INCLUDES:
- Two Wheel Lift Safety Straps
- Two Safety Chains Attached to Boom
- Two Tow Socks
